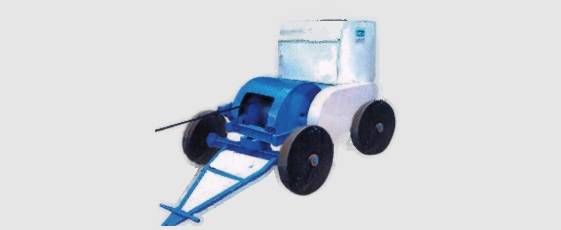

Winch Machine

0.00

Technical Specifications

Model AMH-2000E AMH-1000E
Capacity (Gross Load) 2000 Kgs 1000 Kgs
Net Capacity 1000 Kgs 500 Kgs
Max Height Up to 200 ft Up to 300 ft
Bucket Capacity 500 Ltrs 300 Ltrs
Speed 25–30 Mtrs/Min 25–30 Mtrs/Min
Wire Rope 14 mm Dia Steel Wire Rope 12 mm Dia Steel Wire Rope
Column 65×65×8 mm MS Angle 65×65×6 mm MS Angle
Motor 15 HP, 3-Phase Electrical Motor 10 HP, 3-Phase Electrical Motor
Brake Electro-Magnetic Disc / Shoe-Type Brake
Control Push Buttons Push Buttons
Wheels Fixed Machine / Pneumatic Wheels / MS Wheels

Description

Tower/Material/Builder Hoist

  1. It is suitable for small as well as High structures starting from 10 Feet to 400 Feet
  2. It is easy to operate, since it is provided with Automatic Brake with Push Button
  3. Hence any New Operator can learn and operate easily.
  4. Time Saving : High Speed Lifting mechanism saves time and ensures faster completion of work.
  5. Raw Material is delivered to labour on various floors of the building simultaneously for speedy construction.



  1. Safety of Material : Costly items can be shifted safely with negligible damages.
  2. Cuts down requirement of Man power hence Manpower can be utilized for other works.
  3. Huge Saving in labour charges
  4. Return on investment: Your investment is recovered in 4-5 months of regular usage,

thereafter recurring savings is ensured.

  1. All Building Material can be shifted such as Concrete, Cement, Sand, Blocks, Glass,
  2. Tiles, Marbles, Plywood, Door n Windows, Sanitary items, Electrical Items, Plumbing Items, etc.
